SENNHEISER XS WIRELESS DIGITAL INSTRUMENT BASE SET

Wireless system

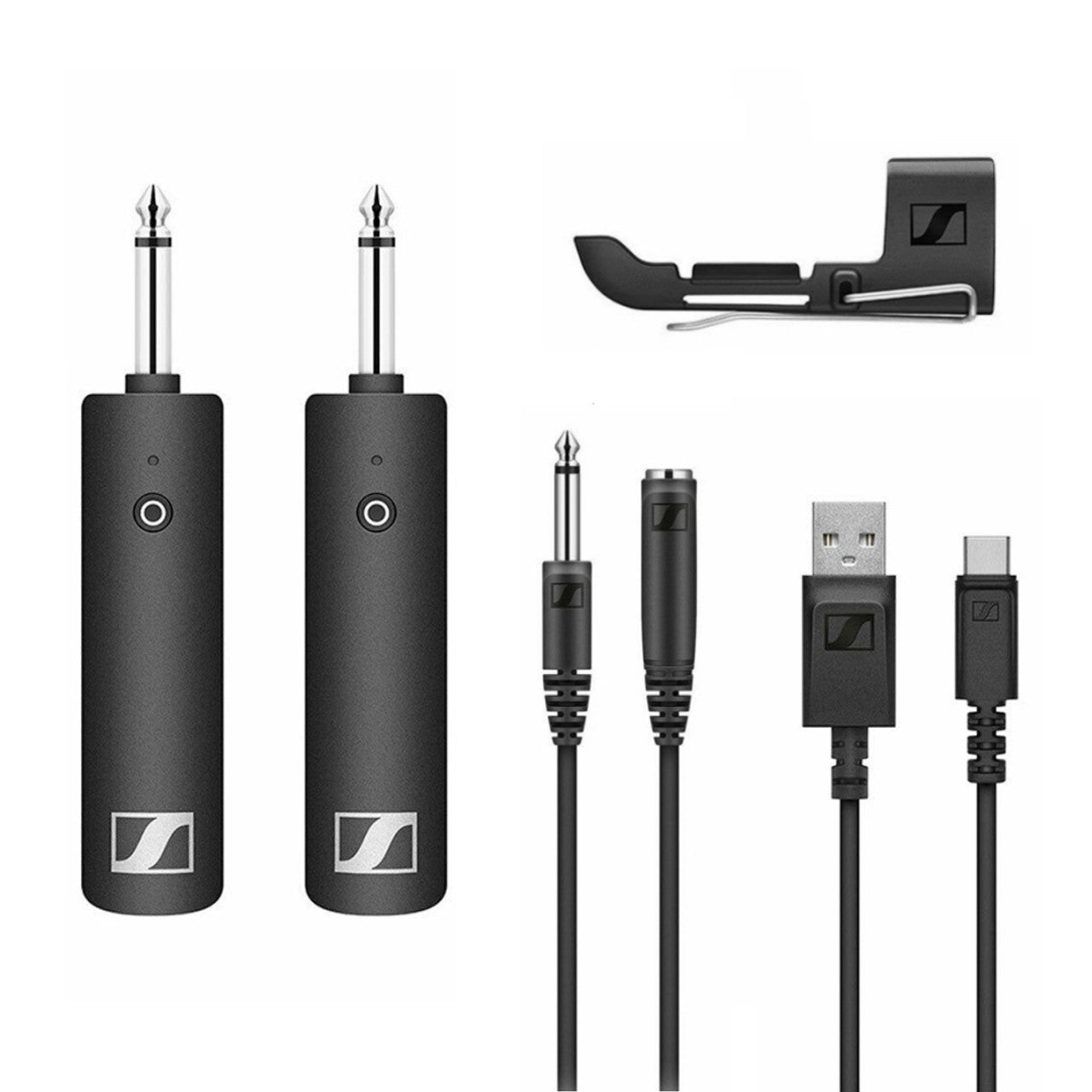

The basic instrument set consists of a transmitter and a receiver, each with a robust 6.3mm jack mounted on a swivel mount. The transmitter connects directly to the instrument, or you can run the 1/4" extension cable from the transmitter to the instrument. The practical belt clip allows you to attach the transmitter to your clothing and remove it during the show. Connect the transmitters to the receiver and you are ready, the system automatically takes care of channel assignment and interference management. If you're looking for an easy-to-use and versatile system, Sennheiser XSW digital systems are the ideal choice.

Technical features:

• Plug and play wireless system instrument operating in the 2.4 GHz digital frequency spectrum
• Lightweight and compact plug-in transmitter and receiver, both with 1/4'' (6.3mm) pin jack connectors
• A 1/4'' extension cable and belt clip allows you to attach the transmitter to your clothing to keep it out of your way when playing
• Incredibly easy to use - just one button and LED status indicator manage power and connection
• Plug sets come pre-matched, so you can get setup and running right out of the box
• Up to five XS Wireless Digital systems can be operated simultaneously
• Channel allocation and interference management are handled automatically
• Range of up to 75m (250ft) under optimal operating conditions
• Multiple transmitters can be paired with a single receiver
• Each component is lightweight and compact, making them easy to keep hidden when in use
• Powered by built-in USB rechargeable lithium-ion batteries providing up to 5 hours of continuous battery life
• Perfect for rehearsals, jamming, small gigs, videographers, and more.
• Operating frequency band: 2,400 mHz - 2,483.5 MHz (2.4 GHz band)
• Operating range: 75 m/250 ft (under optimal conditions)
• Codec: aptX® Live
• Frequency response: 10Hz - 18kHz
• Audio Output: Max. 12dBu
• Signal-to-Noise Ratio: ≥106dB
• THD: <0.1 percent
• Audio latency: < 4ms
• Transmission power: Max. 10 MW (EIRP)
• Modulation: GFSK with TDMA
• Cell type: Li-Ion
• Rated voltage: 3.7V
• Cell capacity: 850mAh
• Operating time: Up to 5 hours
• USB-C Input Voltage: Typ. 5.0 v
• Charging Temperature: 0°C to 60°C/32°F to 140°F
• Charging time: 3 hours (typical)
• Dimensions:
• TX Tool: Approx. 122 x 24 x 28 mm

• RX Tool: Approx. 122 x 24 x 28 mm

• Operating Temperature: -10°C to +55°C/14°F to 131°F
• Relative humidity: 95% (non-condensing)
